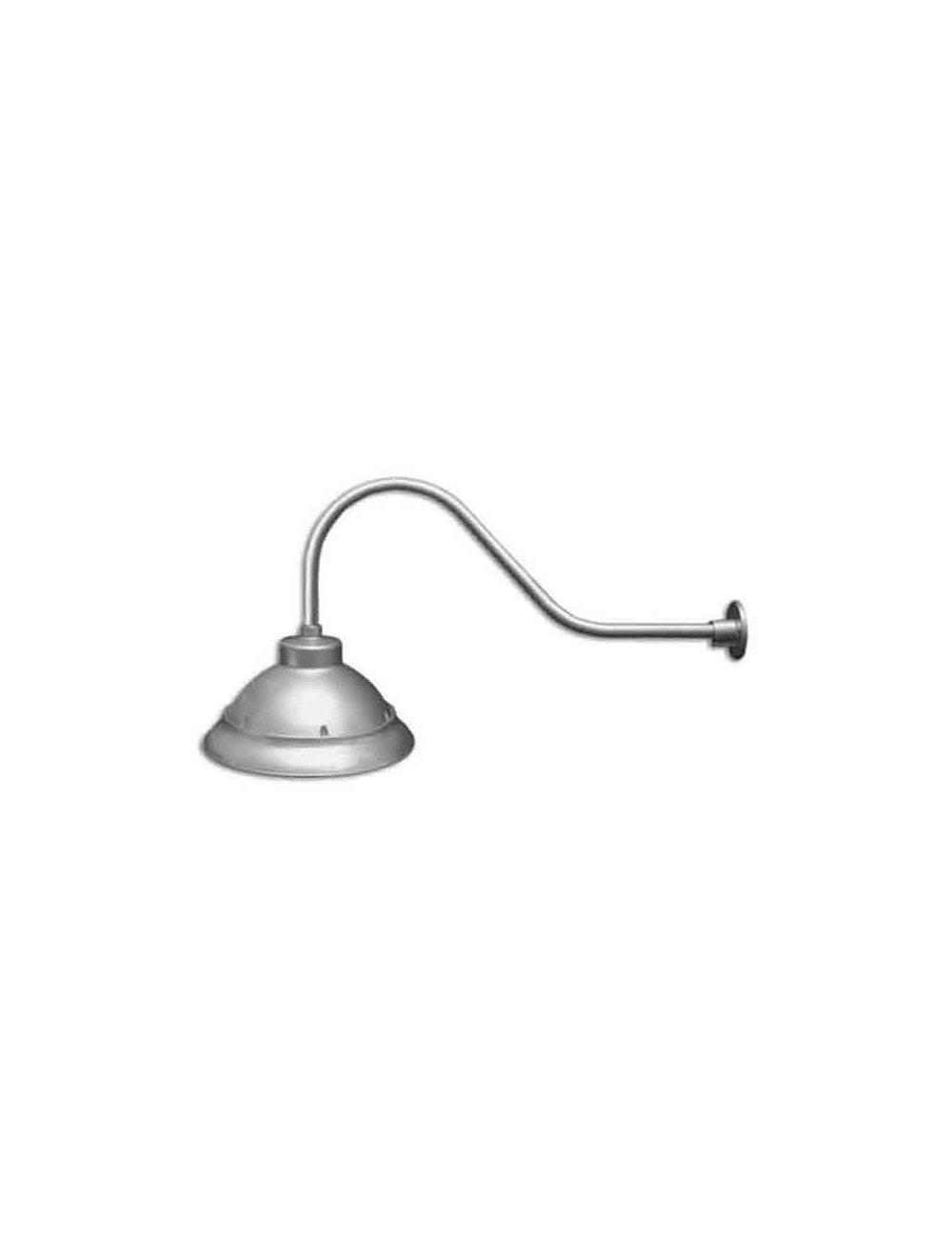

Duragaurd AS201Q 23W Sculptor Small Bell with Shade and Gooseneck Arm 5000K
Duragaurd AS201Q 23W Sculptor Small Bell with Shade and Gooseneck Arm 5000K
Product Description: The DuraGuard AS20 LEDicated Sculptor Small Bell Gooseneck LEDlight luminaire is available with 5 Gooseneck arms of various lengths and is designed to replace HID lighting systems up to 175w MH or HPS. This decorative fixture with prismatic spread lens and glare shade is ideal for retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Designed for architectural wall mounting up to heights of 20 feet based on light level and uniformity requirements.
Duragaurd AS201Q 23W Sculptor Small Bell with Shade and Gooseneck Arm 5000K
Heavy Duty Die Cast Aluminum Housing with Integral Heat Sinking, 3/4" NPS Threaded Mount. Includes Spun Aluminum Shade, Field Removable. Powdercoat Finish Over a Chromate Conversion Coating. Clear Prismatic Polycarbonate Lens. Fixed Mount or Adjustable Swivel with 3/4" NPS Threads. Mount with 3/4" Square or Round Mounting Plates. Custom Colors Available Upon Request.
Housing: Heavy Duty Die Cast Aluminum Housing with Integral Heat Sinking, ¾˝ NPS Threaded Mount. Includes Spun Aluminum Shade, Field Removable.
Listing & Ratings: CSA Listed for Wet Locations, ANSI/UL 1598, 8750 IP66 Sealed LED Compartment
Finish: Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request
Lens: Clear Prismatic Polycarbonate Lens
Driver: Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Mounting Options: Mount with ¾˝ Square or Round Mounting Plates
| Part Number | AS201Q |
|---|---|
| Manufacturer | DuraGuard |
| Watts | 23 Watts |
| CRI | 80 |
| Color Temperature | 5000 Kelvin |
| Beam Angle | Not Specified |
| Input Voltage | 120V-277V |
| Rated Life | 70,000 hours + |
| Minimum Operating Temperature | -4° F |
| Maximum Operating Temperature | 114° F |
| Dimensions | see photos |
| Warranty | 5 Year |
| Certifications |  |
| Specification Sheet | |
| Lead Time | In Stock - Quick Ship |
