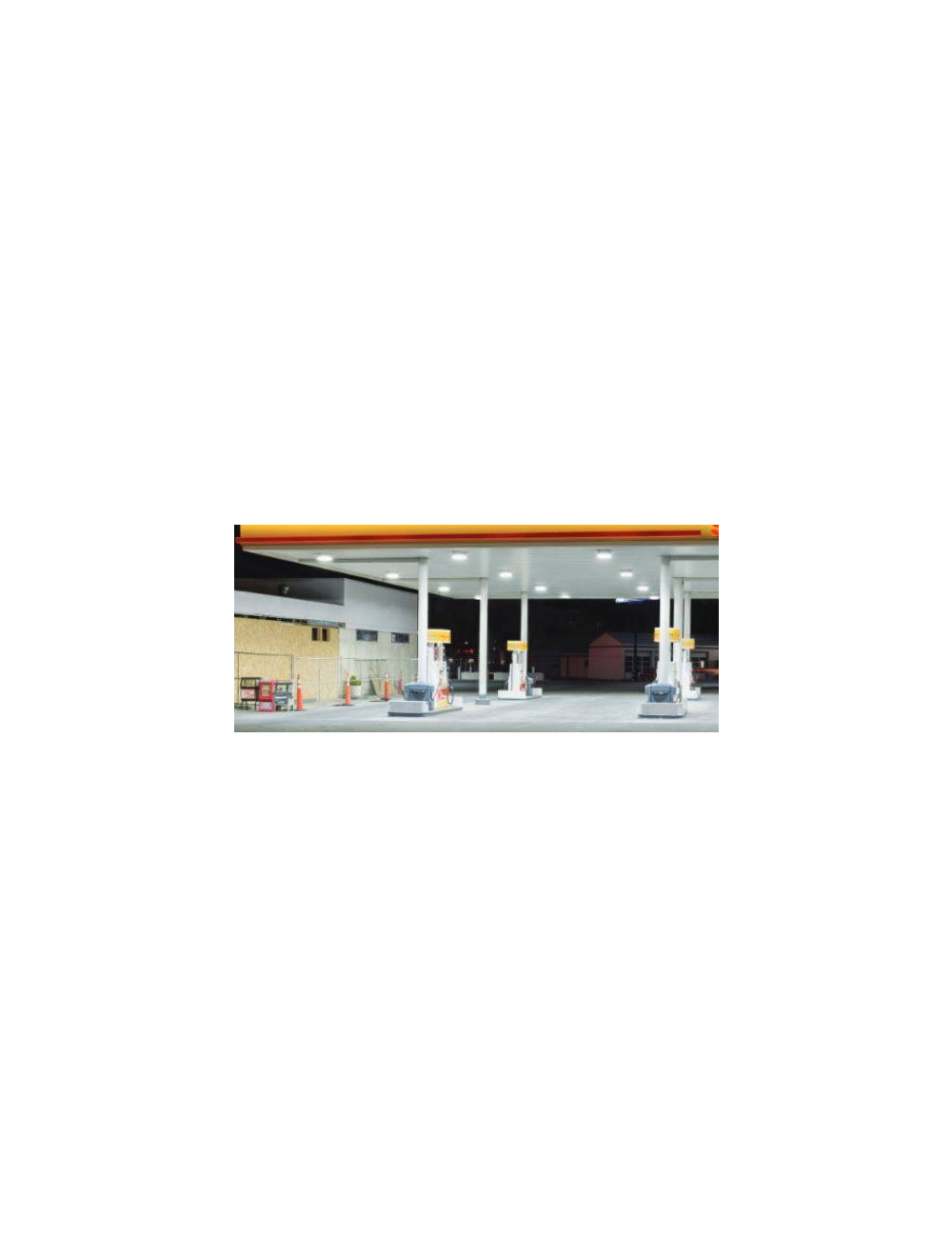

Gas Station Canopy Lighting Package 16 fixtures
System Output - 16 fixtures
Optional Fixture Selection
Maxlite RCX120AU50W000 130w Fixture

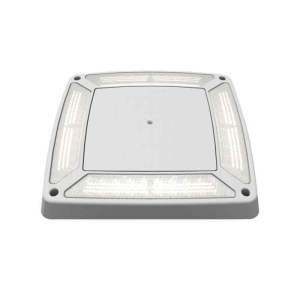

LSI Legcay CRU SC LED HO CW UE WHT 150w Fixture
Maxlite RCX120AU50W000 Specifications:
Designed to offer secure, energy efficient and virtually maintenance-free lighting solutions for new or retrofit projects for service stations. The LED Recessed Gas Canopy Luminaires are available in a 120W options replacing up to 400-watt pulse start metal halide fixtures. The IP66-rated gas canopy luminaries are constructed using a die-cast aluminum housing with a shatterresistant tempered glass lens, and employ high efficacy LEDs. The fixture can be recess-mounted to any canopy with round or square cutout sizes between 3.9” and 9.8” wide.
• Efficacy exceeding 126 lm/W translates to 70% energy savings over HID incumbents
• 80 CRI min
• Universal 120-277V power supply
• Power Factor > 0.9; THD < 25%
• Rated for >120,000-hour L70 lifetime at TM-21 standards, 25°C
• IP66 rated
• 10 year warranty
• Luminaire and standard mounting kit are shipped in the same box.
SMARTTEC™ ENERGY SAVING FEATURES
THERMAL CONTROL - LSI drivers feature integral sensor which reduces drive current, when ambient temperatures exceeds rated temperature.
HOUSING - Low profile, durable die-cast, aluminum construction, providing a reliable weather-tight seal.
LEDS - Features an array of select, mid-power, high brightness, high efficiency LED chips; 5300°K color temperature, 70 CRI (nominal).
DRIVE CURRENT - Choice of High Output (HO) or Very High Output (VHO).
OPTICS / DISTRIBUTION - Choice of Symmetrical or Asymmetrical, which directs light through a clear tempered glass lens, to provide a uniform distribution of light to vertical and horizontal surfaces.
OPTICAL UNIT - Features an ultra-slim 3/4” profile die cast housing, with a flat glass lens. Unit is water-resistant, sealed to an IP67 rating. Integral designed heat sink does not trap dirt and grime, ensuring cool running performance over the life of the fixture.
PRESSURE STABILIZING VENT - Luminaire assembly incorporates a pressure stabilizing vent breather to prevent seal fatigue and failure.
HAZARDOUS LOCATION - Designed for lighter than air fuel applications. Product is suitable for Class 1 Division 2 only when properly installed per LSI installation instructions.
DRIVER - State-of-the-art driver technology superior energy-efficiency and optimum light output. LSI driver components are fully encased in potting for IP65 moisture resistance. Complies with IEC and FCC standards. Surge protected at 10KV.
DRIVER HOUSING - Die cast aluminum, wet location rated driver/electrical enclosure is elevated above canopy deck to prevent water entry, provide easy “knock-out” connection of primary wiring and contributes to attaining the lowest operating temperatures available. Seals to optical housing via one-piece molded silicone gasket.
OPERATING TEMPERATURE - -40°C to 50°C (-40°F to +122°F)
ELECTRICAL - Universal voltage power supply, 120-277 VAC, 50/60 HZ input. LSI drivers feature two-stage surge protection (including separate surge protection built into electronic driver) meets IEEE C62.41.2-2002, Scenario 1, Location Category C.
FINISH - Standard color is white and is finished with LSI’s DuraGrip polyester powder coat
process. DuraGrip withstands extreme weather changes without cracking or peeling.
INSTALLATION - One person installation. No additional sealant required. Installs in a 12” or 16” deck pan. Deck penetration consists of a 4” hole, simplifying installation and water sealing. Unit is designed to quickly retrofit into existing Scottsdale (4”) hole as well as openings for Encore and Encore Top Access and to reconnect wiring for the SC/ECTA without having to relocate the conduit. Retro panels are available for existing Encores (see back page) as well as kits for recessed and 2x2 installations (see separate spec sheets). Support brackets are provided standard, to prevent sagging of deck.
SHIPPING WEIGHT - 25 pounds (single pack), 50 pounds (double pack).
EXPECTED LIFE - Minimum 60,000 to 100,000 hours depending upon the ambient temperature of the installation location. See LSI web site for specific guidance.
WARRANTY - Limited 5-year warranty.
LISTING - UL and ETL listed to UL 1598, UL 8750 and other U.S. and International safety standards. Suitable for wet locations.
PHOTOMETRICS - Applications layouts are available upon request.
|Part Number||Gas Package|
|Watts||130 Watts, 150 Watts, 1504 Watts|
|Lumens Per Watt||125|
|Color Temperature||5000 Kelvin|
|Beam Angle||Not Specified|
|Rated Life||120,000 hours|
|Minimum Operating Temperature||-40° F|
|Maximum Operating Temperature||122° F|
|Dimensions||20.87" x 20.87"|
|Certifications||, , , , ,|
|Manufacturer Warranty||5 Year|
|Specification Sheet||Upon Request|
|Lead Time||In Stock - Quick Ship|
