LSI XDLMA LIfestyle Medium Decorative Angle Shade LED SS Area Light 136w

LSI XDLMA LIfestyle Medium Decorative Angle Shade LED SS Area Light 136w

LED Lifestyle pedestrian scale luminaires offer flat lens dark sky friendly performance in a specification grade housing with an appearance that is second to none. Using a variety of modular components and mounting options, you can create multiple looks that meet virtually any design application. This fixture is perfect for pedestrian area, walkways, parking lots, train stations, piers, shopping malls and plazas, and much more.

You can choose the shade style, size, mount, color, and optics that match the design theme of your project.  With endless possibilities your project will be sure to stand out.

$1,506.28
Lead Time
Build Item 2-3 Weeks
SKU
XDLMA SS

LSI XDLMA LIfestyle Medium Decorative Angle Shade LED SS Area Light 136w

Light Output Variations Lumens
Type 3 Type FT Type 5 Watts
Cool White SS 13470 14080 13310 136
HO 18730 19920 18480 205
Neutral White SS 11180 11780 11130 136
HO 18070 19370 18080 205
Warm White SS 11440 11980 11040 136
HO 15380 16350 15130 205

SMARTTEC™ - LSI drivers feature integral sensor which reduces drive current when ambient temperatures exceed rated temperature

ENERGY SAVING CONTROL OPTION - DIM - 0-10 volt dimming enabled with controls by others. BLS - Bi-level switching responds to external line voltage signal from separate 120- 277V controller or sensor (by others), with low light level decreased to 30% maximum drive current.

EXPECTED LIFE - Minimum 60,000 to 100,000 hours depending upon the ambient temperature of installation location.

LEDS - Select high-brightness LEDs in Cool White (5000K), Neutral White (4000K), or Warm White (3500K) color temperature, CRI 70.

DISTRIBUTION PATTERN - Types 3, FT and 5. Exceptional uniformity creates bright environment at lower light levels. Improved backlight cutoff minimizes light trespass.

CROWN - Cast aluminum. Wiring emerges from crown through compression seal fitting to prevent water entry. One-piece silicone gasket seals crown to shade for water- and dusttight construction.

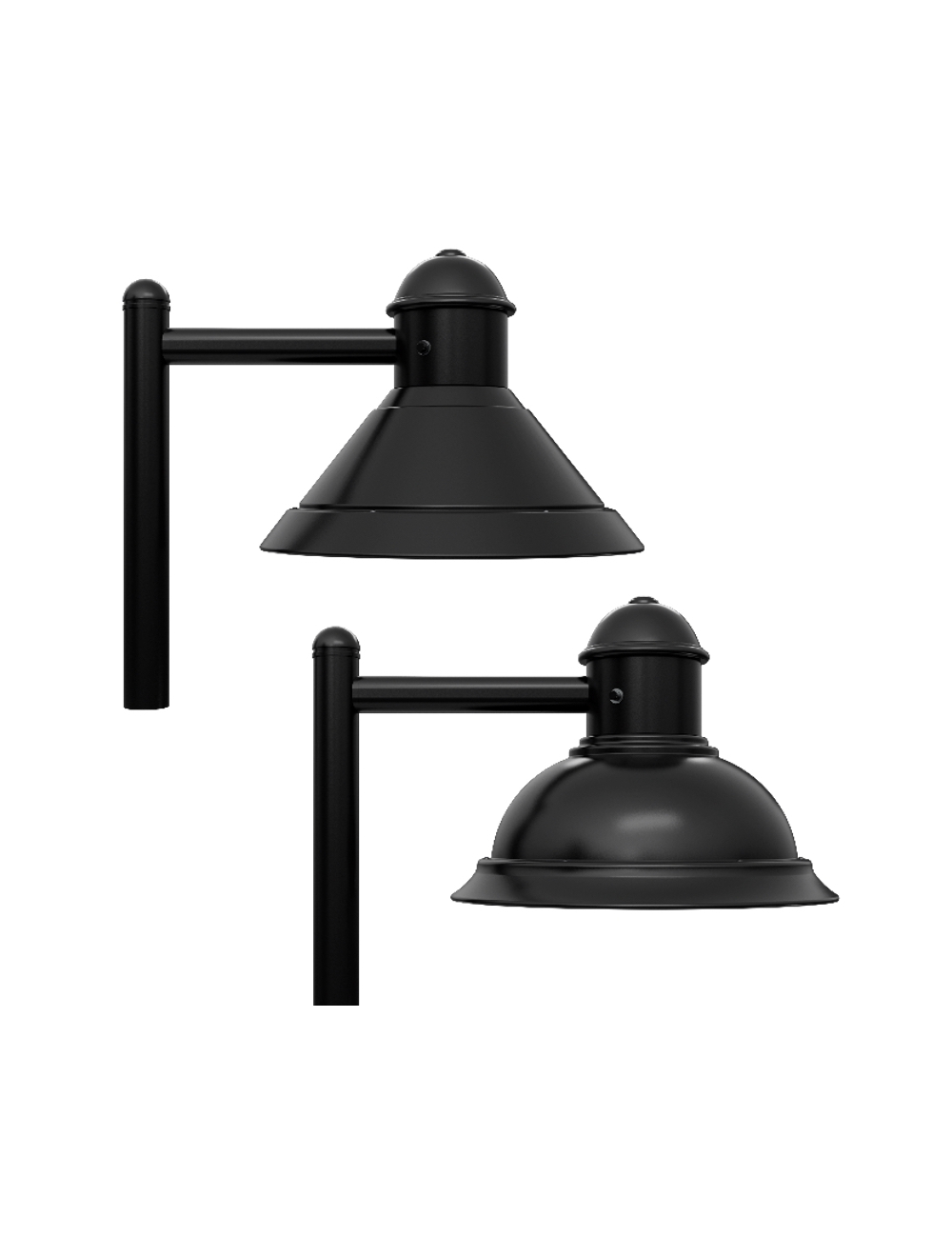

SHADES - Spun aluminum. Two shade styles available - A - Angle and B - Bell.

OPTICAL UNIT - Optical unit and aluminum door frame recessed into shade and sealed with one-piece silicone gasket. Clear tempered flat glass lens sealed with silicone gasket to door frame (includes pressure-stabilizing breather). Optical unit is tethered and provides access to driver. Door frame retaining fasteners are captive.

BRACKETS - Brackets are extruded and cast aluminum assemblies or fabrications. All decorative elements are die cast or extruded aluminum.

MOUNTING - Classic Hook (CH), Side Arm (SA - 4” O.D. minimum pole top required), Wall Mount (W - for use SA style), Universal Pole Clamp (UCL) available. See Steel Round Pole and Aluminum Round Pole data sheets for pole selection information. Side Arm pole mount requires 3” reduced drilling pattern. Classic hook mount requires a 4” O.D. pole or tenon.

ELECTRICAL - Two-stage surge protection (including separate surge protection built into electronic driver) meets IEEE C62.41.2-2002, Location Category C. Available with universal voltage power supply 120-277VAC (UE - 50/60Hz input), and 347-480 VAC. Optional button-type photocells (PCI) are available in 120, 208, 240, 277 or 347 volt (supply voltage must be specified).

DRIVERS - Available in SS (Super Saver) and HO (High Output) drive currents (Drive currents are factory programmed.). Components are fully encased in potting material for moisture resistance. Driver complies with FCC standards. Driver and key electronic components can easily be accessed.

OPERATING TEMPERATURE - -40°C to +50°C (-40°F to +122°F).

FINISH - Each fixture is finished with LSI’s DuraGrip polyester powder coat process. The DuraGrip finish withstands extreme weather changes without cracking or peeling.

WARRANTY - LSI LED fixtures carry a limited 5-year warranty.

PHOTOMETRICS - Please contact for detailed photometric data and layout requests

SHIPPING WEIGHT (IN CARTON) - 36 lbs. (16.3 kg)

LISTINGS - UL listed to U.S. and Canadian safety standards. Suitable for wet locations

More Information
Part Number XDLMA 5 LED SS CW UE
Manufacturer LSI
Watts 136 Watts
Lumens 14080
Lumens Per Watt 104
CRI 70
Color Temperature 3500 Kelvin, 4000 Kelvin, 5000 Kelvin
Beam Angle Not Specified
Input Voltage 120V-277V
Rated Life 100,000 hours +
Minimum Operating Temperature -40° F
Maximum Operating Temperature 122° F
Dimensions 27.625"Diameter x 22.0" Height
Warranty 5 Year
Certifications , , , , , , , , ,
Specification Sheet

 XDLM Data Sheet

Lead Time Build Item 2-3 Weeks
