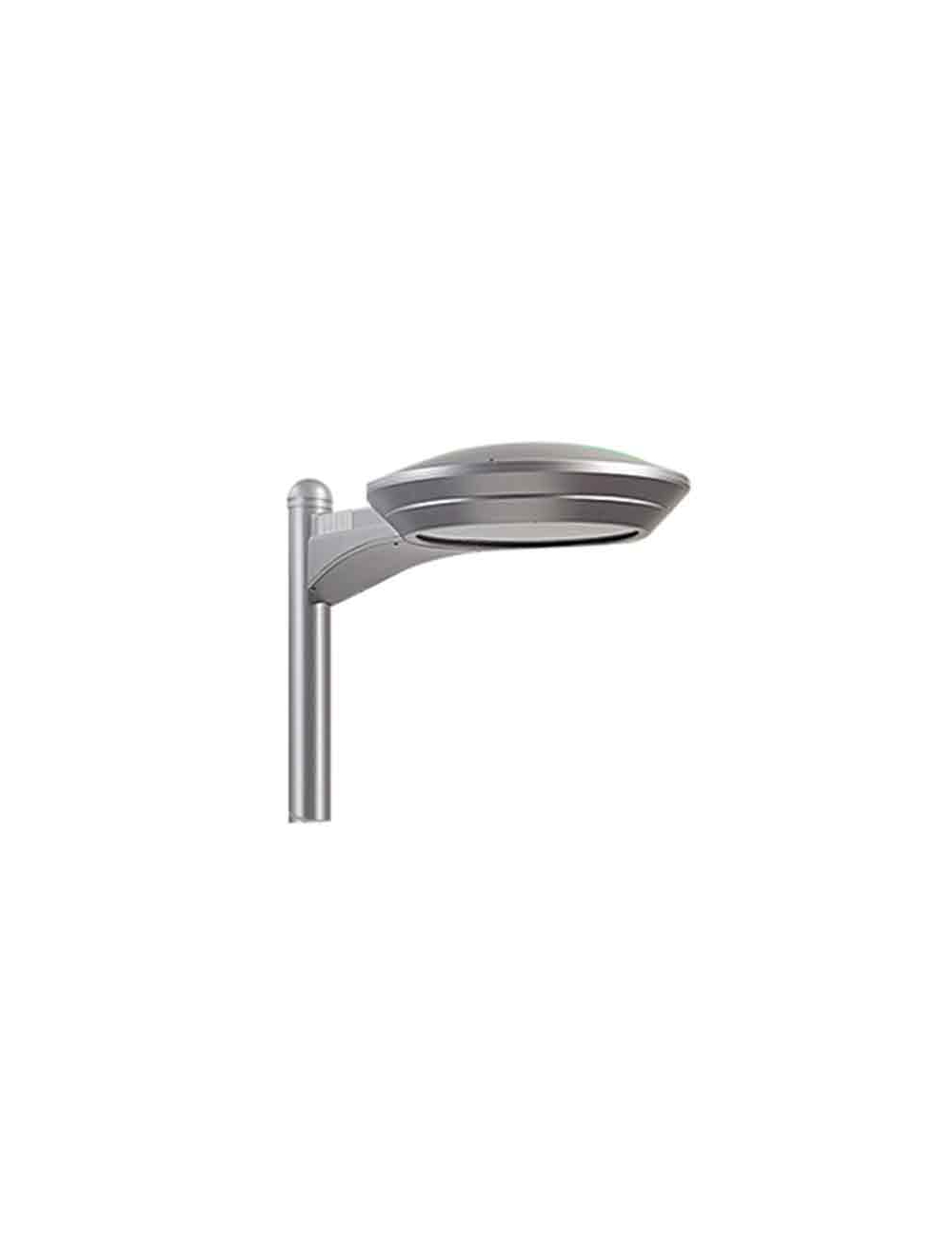

LSI XENM3 Enterprise Decorative LED Area Light

LSI XENM3 Enterprise Decorative LED Area Light

Featuring LSI’s high-performance LED optical system, the Enterprise is designed for illuminating pathways, walkway areas and campus sites. Its modern look complements contemporary architectural design elements of a site. These fixtures provide equal to or better performance than existing HID alternatives and save over 40% in energy when compared to them.

$1,469.11
Lead Time
Build Item 2-3 Weeks
SKU
XENM3

LSI XENM3 Enterprise Decorative LED Area Light

SMARTTEC™:  LSI drivers feature integral sensor which reduces drive current, when ambient temperatures exceed rated temperature.

Energy Saving Control Options:  DIM - 0-10 volt dimming enabled with controls by others. BLS - Bi-level switching responds to external line voltage signal from separate 120- 277V controller or sensor (by others), with low light level decreased to 30% maximum drive current.

LEDS:  Select high-brightness LEDs in Cool White (5000K) or Neutral White (4000K) color temperature, 70CRI.

Distribution/Performance:  Types 3, FT, and 5. Exceptional uniformity creates bright environment at lower light levels. Improved backlight cutoff minimizes light trespass.

Housing:  Modular fixture is available in two mounting styles - Post Top and Side Mount. One piece housing/support frame is die-cast aluminum. Combination mounting arm/driver enclosure on side mount versions is die-cast with integral ribs for heat dissipation. Access cover and support arms for post top versions are die-cast aluminum.

Housing Top Cap:  Removable spun aluminum cap/post top driver enclosure is retained by captive stainless steel fasteners and safety cables. Housing and top cap interface is sealed with a one-piece extruded silicone gasket. Tool-less entry option is available.

Sealed Optical Unit:  Lens is clear, flat tempered glass, sealed to aluminum optics housing. Pressure stabilizing breather allows super-tight protection while preventing temperature cycling from building up internal pressures and vacuums that can stress optical unit seals and components.

Fasteners:  All exposed fasteners are black oxide coated stainless steel. Internal fasteners are stainless steel or zinc electroplated steel.

Electrical:  A terminal block for attachment of incoming primary wiring is supplied. Twostage surge protection (including separate surge protection built into electronic driver) meets IEEE C62.41.2-2002, Location Category C. Available with universal voltage power supply 120-277VAC (50/60Hz input), 347VAC and 480VAC. Optional button-type photocells (PCI) are available in 120, 208, 240, 277 or 347 volt (supply voltage must be specified).

Driver:  Available in Super Saver (SS) and High Output (HO) drive currents (Drive currents are factory programmed). State-of-the-art driver technology designed specifically for LSI LED light sources provides unsurpassed system efficiency. Components are fully encased in potting material for moisture resistance. Driver complies with IEC and FCC standards.

Operating Temperature:  -40°C to +50°C (-40°F to +122°F).

Mounting:  Post Top, Side Arm and Wall mounting available. Pole selection information shown under fixture drawings.

Finish:  Fixtures are finished with LSI’s DuraGrip® polyester powder coat finishing process. The DuraGrip finish withstands extreme weather changes without cracking or peeling.

Warranty:  LSI LED fixtures carry a limited 5-year warranty.

Photometrics:  Please visit our web site at www.lsi-industries.com for detailed photometric data.

Listing:  Listed to U.S. and Canadian safety standards. Suitable for wet locations.

More Information
Part Number XENM3
Manufacturer LSI
Watts 70 Watts, 108 Watts
Lumens Varies
Lumens Per Watt Varies
CRI 70
Color Temperature 3000 Kelvin, 4000 Kelvin, 5000 Kelvin
Beam Angle Not Specified
Input Voltage 120V-277V, 480V
Rated Life 100,000 hours +
Minimum Operating Temperature -40° F
Maximum Operating Temperature 122° F
Dimensions 37 1/4" x 25 1/2"
Warranty 5 Year
Certifications , ,
Specification Sheet

 XENM3 Data Sheet

Lead Time Build Item 2-3 Weeks
