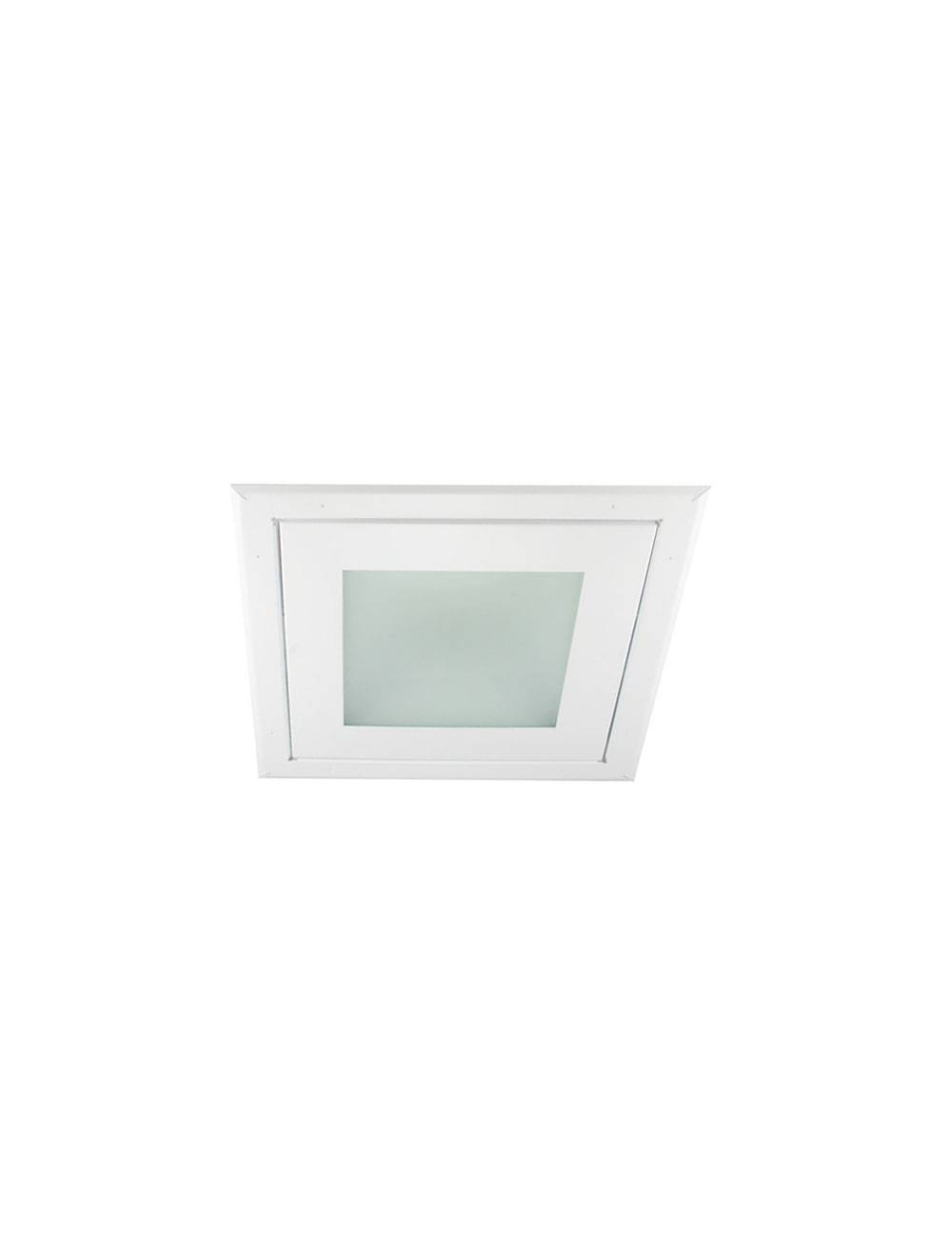

LSI XSPS S LED HO CW 120 GWT DFL Recessed LED Soffit Light Fixture 59w
The XSPS is designed for recessed downlighting applications such as soffits, commercial canopies and drive-thrus with a shallow plenum area. The compact LED fixture is easily installed directly to soffit surface in either retrofit or new construction applications. The XSPS provides excellent performance in a sleek, flush mount fixture.
LSI XSPS S LED HO CW 120 GWT DFL Recessed LED Soffit Light Fixture 59w
EXPECTED LIFE - Minimum 60,000 hours to 100,000 hours depending upon the ambient temperature of the installation location. See LSI web site for specific guidance.
LEDS - Select high-brightness LEDs. Cool White 5000K color temperature, 70 CRI.
DRIVER CURRENT - Super saver (SS) - most economical and highest lumens per watt or High Output (HO) - highest output per initial dollar.
DISTRIBUTION/PERFORMANCE - Type S (Symmetric). Excellent uniformity with Bug rating of B2-UO-G1. Diffused lens is standard to reduce visibility of diodes.
HOUSING/OPTICAL UNIT - Housing is die-formed aluminum with tempered glass lens providing a water-resistant seal. Die-formed aluminum enclosure contains factory prewired driver and optical unit containing LEDs.
MOUNTING - Direct mounts with screws through the mounting frame is standard. 8” clearance required for ease of installation.
ELECTRICAL - Universal frequency power supply (50/60 Hz). Supply voltage must be specified for pre-wired thermal protectors.
DRIVER - State-of-the-art driver technology designed specifically for LSI LED light sources provides unsurpassed system efficiency. Driver will operate with input of 120/208/240/277V (50/60 Hz). Components are fully encased in potting material for moisture resistance. Driver complies with IEC and FCC standards. 0-10 V dimming supplied standard with all drive currents.
OPERATING TEMPERATURE - -40°C to +40°C (-40°F to +104°F). Preliminary.
FINISH - Each fixture is finished with LSI’s DuraGrip® polyester powder coat finishing process. The DuraGrip finish withstands extreme weather changes without cracking or peeling, and is guaranteed for five full years. Standard color is gloss white.
WARRANTY - LSI LED fixtures carry a limited 5-year warranty.
PHOTOMETRICS - Please contact us for detailed photometric data.
LISTING - Listed to U.S. safety standards. Suitable for damp locations.
SHIPPING WEIGHT - 6 lbs.
Part Number | XSPS S LED SS CW 120 GWT DFL |
---|---|
Manufacturer | LSI |
Watts | 43 Watts |
Lumens | 4541 |
Lumens Per Watt | 104 |
CRI | 70 |
Color Temperature | 5000 Kelvin |
Beam Angle | 180° |
Input Voltage | 120V, 277V |
Rated Life | 100,000 hours + |
Minimum Operating Temperature | -40° F |
Maximum Operating Temperature | 104° F |
Dimensions | 13.25" x 13.25" x 11.6875" |
Certifications | , , , , , , |
Warranty | 5 Year |
Specification Sheet | |
Lead Time | Build Item 2-3 Weeks |
