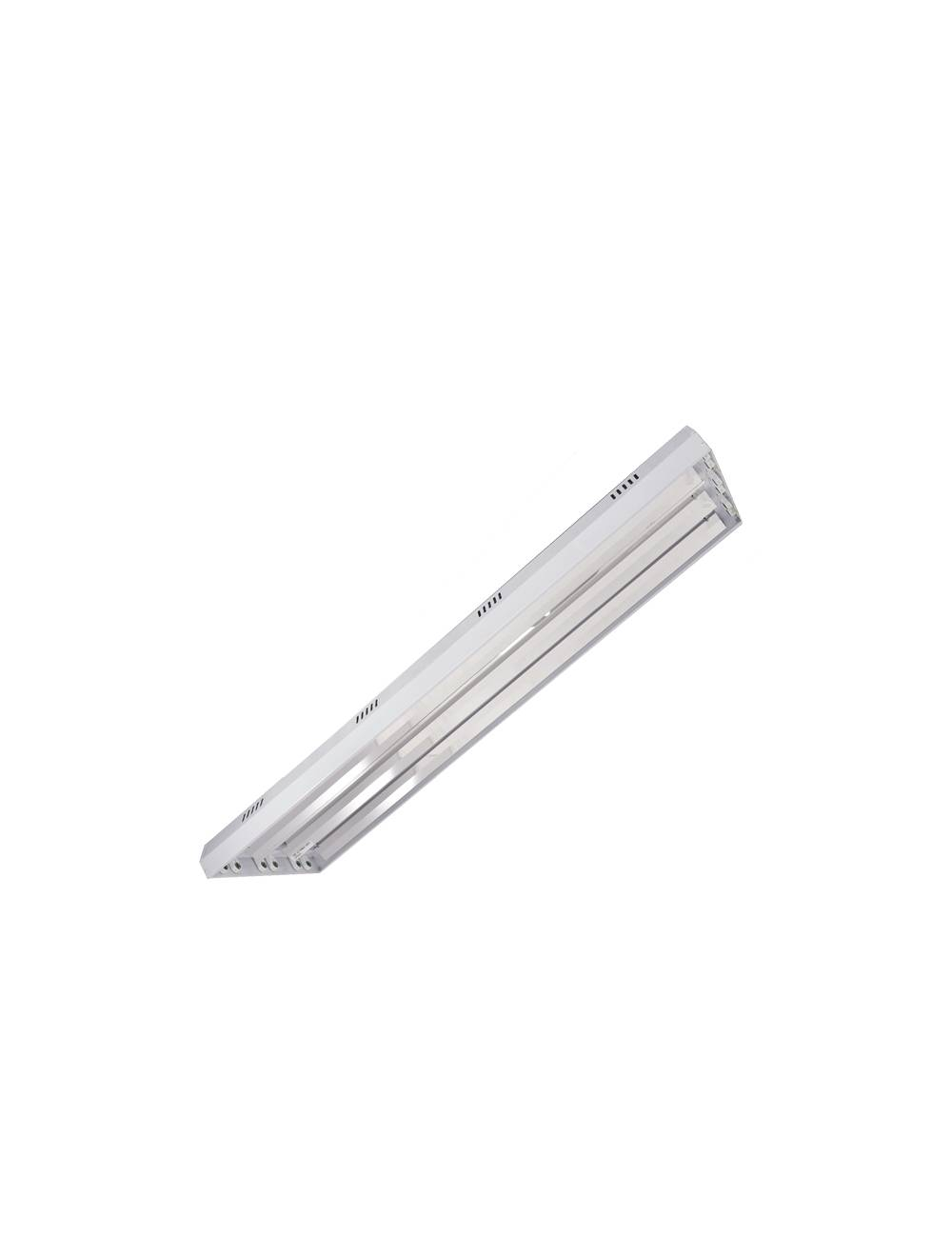

Maxlite BLHT8XT8USE4820 8 Lamp T8 Linear LED Highbay 75430
PRODUCT DESCRIPTION:
The MaxLite T8 LED Lamp Ready linear Highbay provides distributors, contractors, and buyers with a UL listed fixtures designed specifically for LED T8 lamps. These Linear Highbay are constructed of the same durable materials as our Commercial Industrial grade fluorescent and LED PCB versions. These fixtures support competitive light output when used with MaxLite brand T8 LED single ended lamps. These fixtures are verified for use in Highbay, Lowbay, assembly, warehouse, and other general lighting applications
Maxlite BLHT8XT8USE4820 8 Lamp T8 Linear LED Highbay 75430
PRODUCT DESCRIPTION:
The MaxLite T8 LED Lamp Ready linear Highbay provides distributors, contractors, and buyers with a UL listed fixtures designed specifically for LED T8 lamps. These Linear Highbay are constructed of the same durable materials as our Commercial Industrial grade fluorescent and LED PCB versions. These fixtures support competitive light output when used with MaxLite brand T8 LED single ended lamps. These fixtures are verified for use in Highbay, Lowbay, assembly, warehouse, and other general lighting applications
FEATURES:
• Designed for LED Single Ended lamps – Lamps supplied separately
• Maximum Photometric Efficiency with directional lamps
• V-Hooks std. with fixture, Cable kit mounting accessory available.
• Hinged Access Door for Emergency back up ballast** access (see options)
• 10-Year Warranty • Knockouts on each end for motion sensor mounting
CONSTRUCTION:
• 22 Gauge Galvanized Steel, white post painted baked on enamel.
• High Polish Reflector – 86% enhanced
• Damp rated housings
• Supplied with ONLY Non-Shunted sockets and Single ended wiring configurations.
• Fits current MaxLite Linear HB door, wire guard, and lens accessories
CONTROL:
• Optional Occupancy sensor available* (on/off)
Part Number | BLHT8XT8USE4820 |
---|---|
Manufacturer | Maxlite |
Watts | 144 Watts |
Lumens | 15600 |
CRI | 82 |
Color Temperature | 5000 Kelvin |
Beam Angle | 120° |
Rated Life | 50,000 hours + |
Input Voltage | 120V-277V |
Dimmable | No |
Minimum Operating Temperature | -4° F |
Maximum Operating Temperature | 122° F |
Dimensions | 48" x 20" x 3" |
Certifications | , , , , |
Warranty | 5 Year |
Specification Sheet | |
UPC Code | 767627951466 |
Lead Time | In Stock - Quick Ship |
