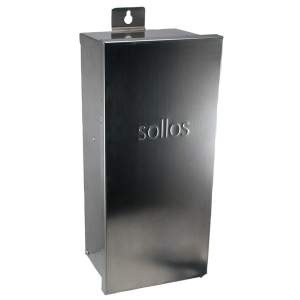

Sollos TR15SS-900 Commercial Grade Transformer 900w 997008

Be the first to review this product

Quick Overview

Sollos TR15SS-900 Commercial Grade Transformer 900w 997008

$465.71
$465.71

Description

Sollos TR15SS-900 Commercial Grade Transformer 900w 997008

Housing:
• Brushed 304 grade stainless steel
• Removable hinged cover for easy access
• Tool-less bottom access plate locks into place when cover is closed
• Rounded housing edges and hinged bottom access plate provide a safe and maximized wiring space
• Plug-in photocell and timer socket in weatherproof compartment
• Bottom panel contains one large 1 1/2" conduit inlet and four 3/4" knockouts for lead exit
• 1/2" knockout side for accessory mounting
• Increased wiring space
• More space for timer
• Better access on/off switch with timer installed
• Improved photocell connector access

Electrical:
• Input Voltage: 120V
• Magnetic circuit breaker for every 300W circuit
• Output Voltage Taps: 12/13/14/15 Volts
• TR15SS-1200 also includes 17, 20, and 22V taps

Protection:
• In-line primary overload protection prevents system damage with auto thermal shut-off
• In-line secondary magnetic breaker prevents short circuit protection with reset

Terminals:
• Extra-large terminal block for convenient low voltage cable connections

Mounting:
• Mounting brackets located on top and bottom of the console

Warranty:
• Backed by a limited lifetime warranty to be free from defects in material and/or workmanship

Specification

Part Number TR15SS-900
Manufacturer Sollos Lighting
Watts 900 Watts
Number of Circuits 3 Circuit
Input Voltage 120V
Output Voltage 12V, 13V, 14V, 15V
Minimum Operating Temperature -20° F
Maximum Operating Temperature 140° F
Dimensions 8"W x 13.5"H x 7.25"D
Certifications , ,
Manufacturer Warranty 2 Year
Specification Sheet

 Commercial Grade Transformer Data Sheet

Lead Time Build Item 7-10 Days
UPC Code No
